What are the different types of databases? Complete Guide with Examples and Models

Types of Databases Explained with Examples and Use Cases

Each database type gets built for particular workloads, like working with structured datasets or managing formless unstructured records. These different types of databases really matter for how well an application runs in various conditions, including scalability and also speed expectations.

The main database types are described below, with examples and real world uses, so it feels more practical.


1. Relational Database

   A relational database is one of the most widely used type of database - it stores data in a structured format using tables (rows and columns). Each table stores a specific type of data and relationships are established between tables using various keys.

   Schema
   It follows a predefined schema.
   Meaning the data structure must be defined before the data is stored. This makes it highly organized for applications that require accuracy and consistency.

   Data Format: Structured

   Language: SQL (Structured Query Language)

   Example of a Relational Database: MySQL, PostgreSQL, Oracle Database, Microsoft SQL Server

   Key Features
   - Data stored in structured way tables (rows and columns).
   - Relationships between tables are established using keys (primary and foreign keys).

   Relational Database Benefits
   - It has very high data accuracy and consistency.
   - Structured data can be easily accessed.
   - Secure and highly reliable.
   - Easy querying.

   Relational Database Limitations
   - Not flexible for unstructured or semi-structured data storage.
   - Due to the fixed schema, making changes later is very difficult especially with large datasets.
   - Performance slows down with large datasets.
   - Too many JOINs also slow down performance.

   Use Cases: Banking Systems, E-commerce Platforms, Content Management Systems (CMS), Blogging, Inventory Management, Hospital Management System, etc.




2. NoSQL Database

   A NoSQL database is a type of database that stores and manages unstructured, semi-structured or large-scale data.
   It does not follow the model of traditional databases such as relational databases. It is designed for high scalability and flexibility.

   Schema
   It follows a dynamic schema or schema-less structure
   Meaning, there is no need to define the data structure before storing the data which makes it extremely flexible.

   Data Format: Unstructured and Semi-structured

   Language: Varies by Database type like MongoDB uses its own query language.

   Example of a NoSQL Database: MongoDB, Cassandra, Redis, CouchDB, DynamoDB

   Key Features:
   - Data can be stored in any flexible format, such as key-value, column, graph or documents.
   - It handles large data efficiently.
   - Flexible data stores due to schema-less structure.

   NoSQL Database Benefits
   - Performance does not slow down even with large datasets.
   - It is highly scalable with large data.
   - A flexible schema allows for easy modification of data structure.
   - It is highly suitable for real-time applications where fast data processing is required.

   NoSQL Database Limitations
   - It has far less consistency compared to relational databases.
   - Issues arise with complex queries and JOIN operations due to a lack of support.
   - This is not for applications that require strict table relationships.
   - Managing data integrity is extremely complex.

   Use Cases: Real-Time applications, Social Media Platforms, IoT Applications, Real-time messaging apps, Content delivery systems, Gaming systems, Big Data applications.




3. Cloud Database

   A cloud database is a type of database that is hosted on cloud computing platforms rather than on a local machine and is accessed via the internet.
   It is maintained by a cloud service provider and is designed for high scalability, flexibility and constant availability.

   Schema
   Support both Relational (Structured) and Non-Relational (NoSQL)
   Meaning, you can design the database structure to be either fixed or flexible, depending on the requirements.

   Data Format
   Relational DBs = structured data
   NoSQL DBs = semi-structured and unstructured data

   Language: Depend on database type (SQL and Non-SQL both support)

   Example of a Cloud Database: Amazon RDS (Relational Database MySQL, PostgreSQL), Google Cloud Firestore (NoSQL Database), Microsoft Azure SQL Database (Relational Database), Amazon DynamoDB (NoSQL Database), Google Cloud Spanner (Relational Database)

   Key Features
   - Hosted and managed on the cloud platform itself.
   - It provides high availability and automatic backups.
   - Access it from anywhere via internet.
   - It is highly scalable and can be increased or decreased as per requirement.

   Cloud Database Benefits
   - There is no need to manage physical hardware.
   - It scales easily according to traffic size.
   - It offers high availability and supports recovery.
   - Deployment is fast and maintenance is also easy.

   Cloud Database Limitations
   - Performance depends on network speed.
   - Become dependent on cloud service provider.
   - Concerns regarding data privacy always persist.
   - A stable internet connection is always required.

   Use Cases: Data Analytics and Big Data Systems, E-commerce Platforms, Web and Mobile Applications, Online SaaS Platforms, streaming platforms, financial applications, IoT systems, enterprise-level applications.




4. Hierarchical Database

   A hierarchical database is a type of database that stores data in a tree like structure where the data is organized in a parent-child format. Each parent can have multiple child - but each child has only one parent.
   This database is designed for applications where there is a clear data hierarchy and relationships are well-defined.

   Schema
   It follows this predefined hierarchical schema.
   Meaning, the structure must be defined in advance in a tree-like model and relationships (parent-child) are strictly followed.

   Data Format: Structured data (in tree format)

   Language: Use specialized query languages or navigational access methods

   Example of a Hierarchical Database: IBM Information Management System (IMS), Windows Registry (tree-structured system database), LDAP Directory Services


   Key Features
   - Data is stored in tree-like structure or hierarchical (parent-child) structure.
   - Data will be accessed solely through parent-child relationships - no joins are used here.
   - Every child node will have a single parent only.

   Hierarchical Database Benefits
   - Data retrieval is extremely fast.
   - It has a simple and easily predictable structure.
   - Data integrity is very strong due to the strict structure.
   - It is very efficient for one-to-many relationships.

   Hierarchical Database Limitations
   - It is not flexible for complex data relationships.
   - Once a structure is defined, modifying it is very difficult.
   - Extremely poor for many-to-many relationships.

   Use Cases: File systems (organizing files, folders and subfolders), Organizational structures, Banking systems, Telecommunications systems, directory services, government record systems and legacy enterprise applications




5. Object-Oriented Databases

   An object-oriented database stores data in the form of objects, much like object-oriented programming. Each object contains both data (attributes) and behavior (methods), consequently it is designed to effectively handle complex data types within applications.

   Schema
   It follows an object-oriented schema.
   Meaning, data is defined through classes and objects and relationships are established through object references.

   Data Format: Unstructured and semi-structured data (stored as objects)

   Language: Use object-oriented query languages or programming languages such as C++ or Java

   Example of an Object-Oriented Database: ObjectDB, db4o, Versant Object Database

   Key Features
   - Data stored in the form of data objects, like in OOP.
   - Every object contains data and methods.
   - Like OOP concepts, this database also supports inheritance, encapsulation etc.

   Object-Oriented Database Benefits
   - It handles complex data easily.
   - Inheritance aids in code reusability.
   - It supports direct mapping between programming language objects and database objects.
   - It simplifies data access by reducing the need for complex joins.

   Object-Oriented Database Limitations
   - It is too complex for a simple application.
   - Slower for simple queries
   - It isn't widely used, which is why there is very less availbale tools and community support.
   - Database design and maintenance the database is extremely complex due to object complexity.

   Use Cases: CAD/CAM systems, Multimedia applications, Engineering and design systems, Complex data applications like AI systems




6. Network Database

   A network database is a type of database that stores data in a graph-like structure where records are connected by links. It is an extension of the hierarchical model - however, unlike hierarchical databases, a child record here can have multiple parents.
   This database is designed for situations where relationships are highly complex and cannot be defined using a simple tree structure.

   Schema
   It follows a predefined network schema
   Meaning, data is organized in graph structure using records and links and relationships are defined using pointers.

   Data Format: Structured data (graph-like structure)

   Language: System-specific query or navigational database languages are used to traverse links between records.

   Example of a Network Database: Integrated Data Store (IDS), Integrated Database Management System (IDMS), TurboIMAGE

   Key Features
   - Data is stored in a graph structure using nodes and links.
   - There can be any number of parent-child relationships in the record.
   - Data records are connected using pointers.

   Network Database Benefits
   - It handles complex relationships with ease.
   - Supports many-to-many relationships.

   Network Database Limitations
   - The structure is very complex and the design is also extremely challenging.
   - Maintaining data relationships is very difficult, and modifying them is, too.
   - It isn't widely adopted, which is why its tools and community are also very limited.

   Use Cases: Telecommunications networks, Enterprise systems, Airline reservation systems, Banking systems etc.

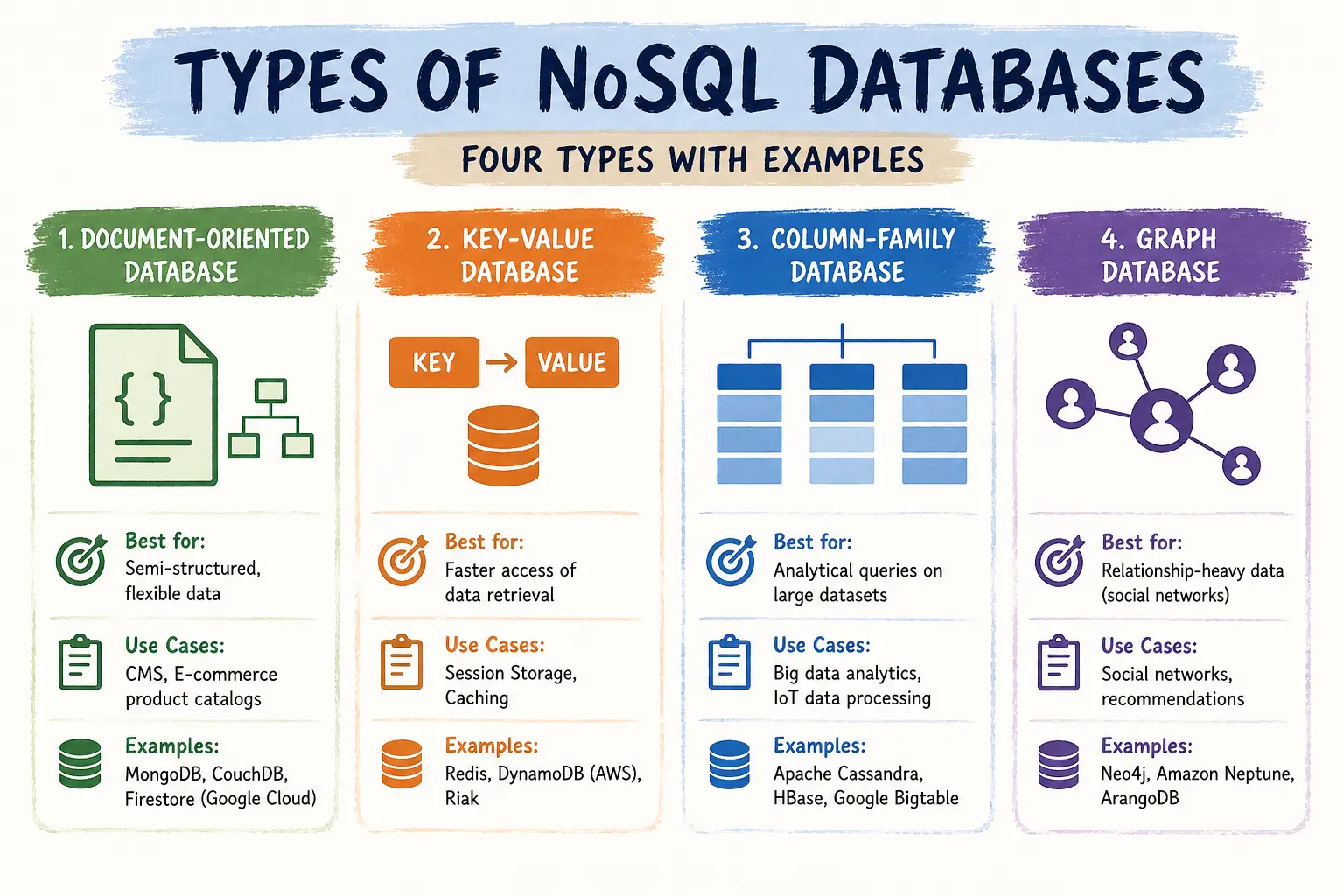

Types of NoSQL Databases with Examples

There are four types of NoSQL databases each type is suited for specific use cases like how they store and organize data.

Explain the Four Types of NoSQL Databases with Examples

1. Document-Oriented Database

   In a document database, data is stored in document formats such as JSON, BSON or XML. Each document has its own distinct structure which makes it highly flexible. Each document is self-contained and independent. Also supports nested and hierarchical structure data.

   Best for: Semi-structured, flexible data

   Use Cases: Content management systems (CMS), E-commerce product catalogs etc.

   Document Database Example: MongoDB, CouchDB, Firestore (Google Cloud)




2. Key-Value Database

   A key-value database stores data in key-value pairs, where each key is unique and is used to retrieve the associated data. The value can be anything an object, a string, a number etc.

   Best for: Faster access of data retrieval

   Key-Value Database Example: Redis, Amazon Web Services (DynamoDB), Riak

   Use Cases: Session Storage, Caching (frequently accessed data)




3. Column-Family Database

   Column-family databases store data in columns rather than rows, grouping data columns together as a column families. It is optimized for write-heavy distributed systems and read performance.

   Best for: This structure is highly effective and efficient for running analytical queries on large datasets.

   Column-Family Database Example: Apache Cassandra, HBase, Google Bigtable

   Use Cases: For big data analytics, IoT data processing etc




4. Graph Database

   A graph database stores data in the form of nodes (entities) and edges (relationships). It is designed to efficiently represent and manage complex relationships.

   Best for: Social network relationship-heavy data (friends, followers)

   Graph Database Database Example: Neo4j, Amazon Neptune, ArangoDB

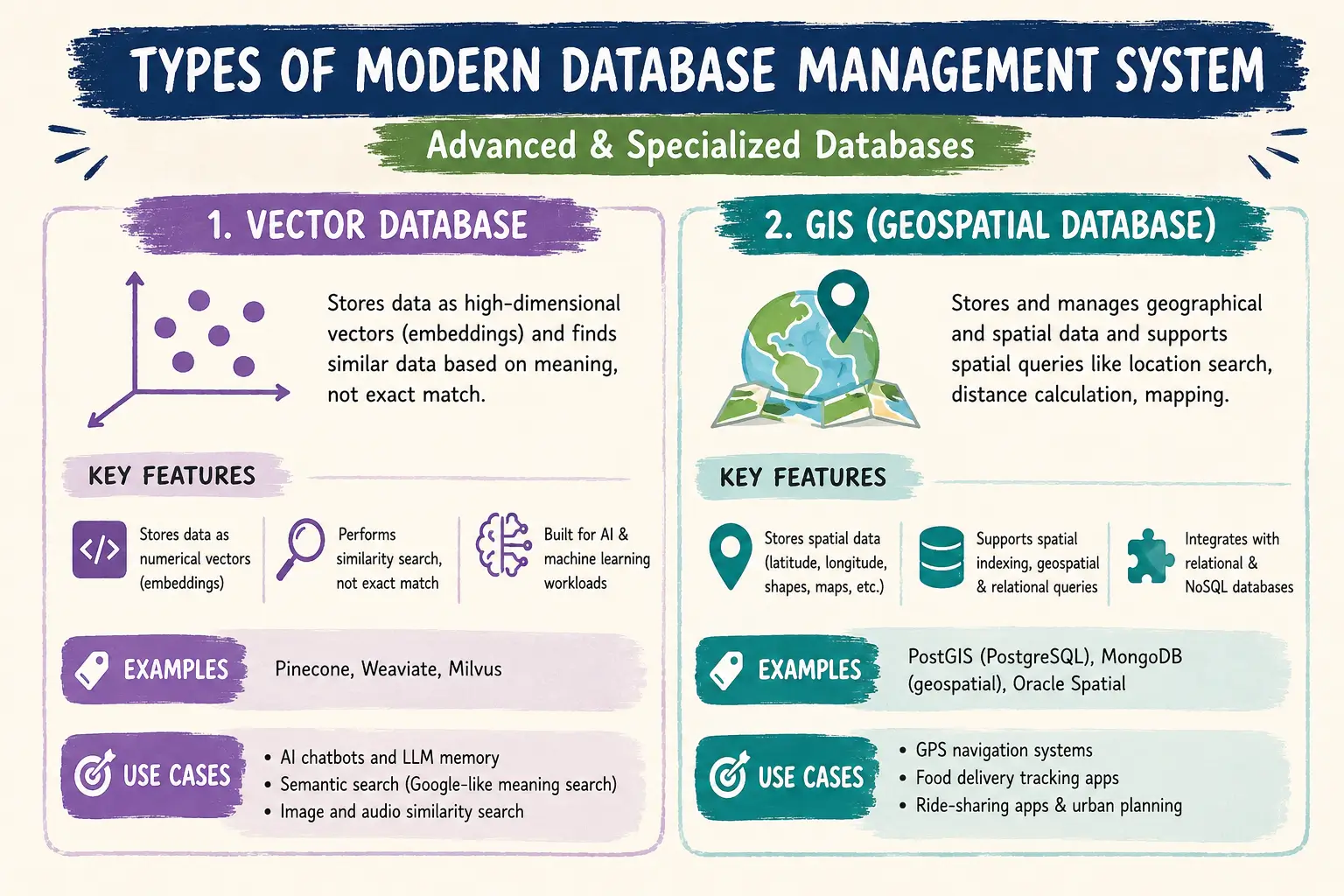

Types of Modern Database Management System

Advanced and Specialized Databases

These are modern database systems designed for specific use cases - they go far beyond traditional and NoSQL databases. They are optimized for specialized workloads such as AI processing, machine learning and applications based on geographical location for process geographic data processing. It can easily handle complex and large-scale operations.

The two types of databases are listed below.

1. Vector Database

   A vector database is a specialized type of database that stores data in the form of high-dimensional vectors (embeddings) for similarity search. These vectors represent the meaning or features of data such as video, audio, images, or text. Instead of looking for exact matches, it performs similarity searches—finding data that is closest in meaning.

   Key Features
   - Stores data in a numerical vectors (embeddings).
   - It performs a similarity search, not an exact match.
   - Like for AI and machine leaning workloads

   Vector Database Example: Pinecone, Weaviate, Milvus

   Use Cases: AI chatbots and LLM memory, Semantic search (Google-like meaning search), Image and audio similarity search




2. GIS (Geospatial Database)

   A GIS or Geospatial Database is a specialized database that stores geographical and spatial data such as coordinates, maps and locations.
   It supports spatial queries like distance calculation, location search and area mapping.

   Key Features
   - It stores spatial data such as latitude, longitude, shapes, maps etc.
   - It supports spatial indexing, geospatial queries, relational queries.
   - It can be integrated with relational and NoSQL databases.

   GIS Database Example: PostGIS (extension of PostgreSQL), MongoDB (supports geospatial features), Oracle Spatial

   Use Cases: GPS navigation systems, Food delivery tracking apps, Ride-sharing applications, Mapping and urban planning systems
