What is Automation Testing in Software Testing: A Complete Guide to Tools, Frameworks, Benefits, and Real-Life Examples

What is Automation Testing

Automation Testing, or Test Automation, is a process that tests software in an automated manner rather than manually typically through the use of scripts and tools.

Test Automation focuses on completely replacing the human activity involved in Manual Testing, where each step of the test cases executed manually.

In contrast, automation testing is faster, more accurate and more reliable than manual testing - most importantly, it eliminates human error. It involves creating test scripts using automation tools and executing them repeatedly as many times as necessary where it is not possible in Manual Testing.

Where Automation Testing Use


• Repetitive Tasks or Test case run - Where test cases need to be executed multiple times 24/7 without fatigue

• Regression Testing - Testing any new code changes or bug fixes to ensure that nothing is breaking of large applications

• Data-Driven Testing - When a same test scenario needs to be validated multiple times using different data sets such as positive and negative inputs, a process that is highly time-consuming in manual testing

• Smoke Testing - Before major releases automation is ideal for performing automated smoke test to quickly verify critcal in funtionality

When to use Automation Testing

1. Requirements do not change frequently
2. Large, complex and long-term ongoing projects
3. Projects that need to test the same areas often (regression testing)
4. Availability of time and resources because automation takes time to design, develop, and maintain
5. Tests that require execution of multiple data sets (parametrization)

Types of Testing that can be Automated

• Smoke Testing
• Regression Testing
• Functional Testing
• Integration Testing
• Unit Testing
• API Testing
• UI Testing
• Cross-Browser Testing
• Mobile Application Testing
• Performance Testing

Why Automation Testing is Important

Automation testing is much crucial because modern software projects are large and it require rapid test execution and minimizes human error. It helps teams validate features faster and effortlessly handles big scale scenarios, plus repetitive tasks, ensuring their consistency and accuracy.


Also, it supports Continuous Integration and Continuous Delivery (CI/CD) which lets teams deliver software quickly and in a dependable manner, making agile test automation easier for fast-moving development teams.

What is an Automation Testing Framework

Automation Testing Framework is not a single tool or process but it is a structure approach of guidelines, standards, libraries - and tools used to design, develop and execute automated test scripts.

Automation framework helps in Code Reusability, Maintaining Consistency, Improving Efficiency, Supporting Scalability. Its guidelines mention coding standards, test-data handling methods, object repositories, processes for storing test results etc.

A testing framework is about defining and establishing protocols, rules and standards to ensure that a project is standardized to the greatest possible extent. And it is essential for any automated testing process.

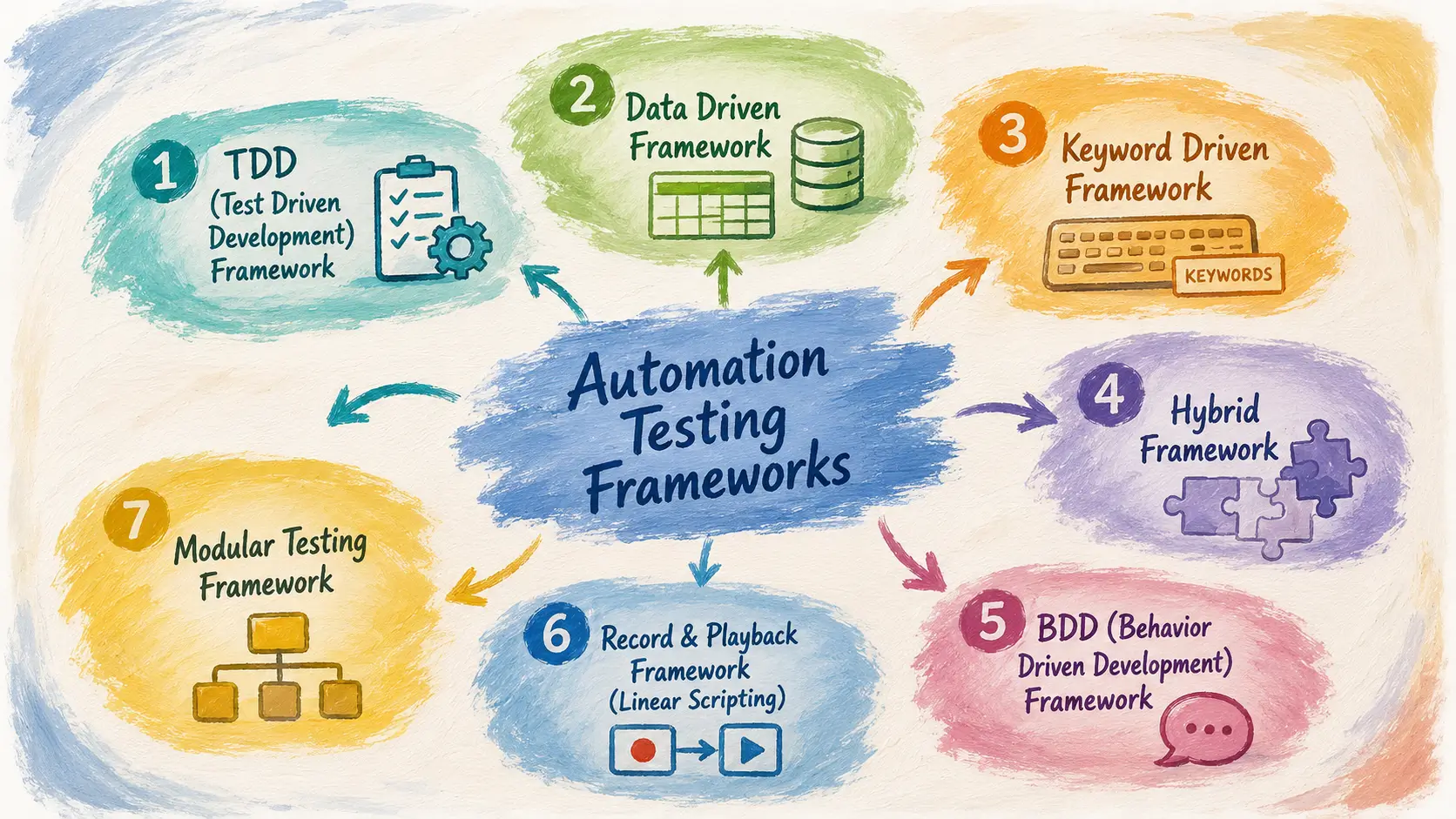

Types of Automation Testing Frameworks

There are various types of testing frameworks designed to address different types of testing needs and project requirements. These are explained below.


1. TDD(Test Driven Development) Framework

   The TDD framework is also known as the test-first approach. In this framework, test cases are created before the actual application code.
   Before coding, we have requirements or user stories and based on that tester start writing test cases that describes the expected behavior. Automation scripts (usually unit tests).

   When to use
   - Ensuring code quality by writing test cases before the actual code
   - Early defect detection
   - Agile development
   - Automated unit testing and regression testing are important
   - Code behavior clearly defined before implementation
   - Features are small and incremental


   Tools
   JUnit (Java)
   NUnit (C# / .NET)
   TestNG (Java)
   PyTest (Python)


   Pros
   - Early defect detection
   - Improves test coverage
   - Helps integration with CI/CD
   - Testing predictable and structured


   Cons
   - Developers and testers have to work closely
   - Development slows down due to writing intial test cases
   - The focus is only on unit-level testing


   Example
   Requirement: Login functionality should display error messages when the password is incorrect
   Write Test Case First Check whether you get an error message when you enter the wrong password or not
   Write Code implement login feature
   Run Test initially, it fails, re-run again the test passes finally the code will be optimized (refactored)



2. Data Driven Framework

   In this testing framework, test data is separate from test scripts. It allows test scripts to be run multiple times with different input data sets.
   Test data is stored externally such as CSV, XML, Excel Sheets, JSON and database while test script store logic of test.


   When to use
   - Same test need to run multiple times with different data
   - Testing with a large number of data combinations
   - Test data are kept separate


   Tools
   Selenium WebDriver (automation)
   TestNG (Java)
   PyTest / pandas (Python)


   Pros
   - Reduces number of test scripts
   - Easier maintenance
   - Automated regression testing
   - Minimizing human error in repetitive testing


   Cons
   - Need to maintain external files for test data
   - Setup take more time
   - Complexity increases as data grows
   - Risk of duplicate or invalid test data


   Example
   Requirement: Test login functionality for multiple users
   Test Data: Test data is stored in an excel file as combinations of username and password
   Execution: The test script will read each row from Excel and try to login
   Outcome: Same script run multiple times and verify each row from excel



3. Keyword Driven Framework

   It is also called table-driven testing and action word based testing. This is an automation framework where test scripts are written using keywords or action words that represent user actions rather than detailed code writing for each step.
   Keywords are stored in external files like XML, CSV, Excel Sheet and automation engine is used to interpret and execute the test cases. The test logic separate from the actual automation code, making it easier for non-technical testers to create and maintain.


   When to use
   - Test cases need to be created by a non-technical tester
   - Test cases need to be created based on keywords or action words
   - Multiple testers need to work on the same project simultaneously
   - Reusability of common test steps


   Tools
   Selenium WebDriver (automation)
   TestNG / JUnit (Java)
   Robot Framework (Python)


   Pros
   - Non-technical testers can also participate in automation
   - Reusability of test steps in multiple test cases
   - Easy Maintenance
   - Supports data-driven testing as keywords


   Cons
   - Initial setup is complex need to mapping with keywords
   - Complex to implement for large applications
   - Harder debugging
   - Slower execution


   Example
   Requirement: Test login functionality
   Keywords: OpenBrowser, NavigateURL, EnterUsername, EnterPassword, ClickLogin, VerifyErrorMessage
   Test Data: Store in excel sheet with username and passowrd combinations
   Execution: The automation engine reads keywords and test data from Excel and executes the steps
   Outcome: Login functionality is tested with all combinations without writing a separate script



4. Hybrid Framework

   A hybrid framework is a combination of two or more frameworks Such as the TDD and BDD combine.

   When to use
   - Project may have various types of testing requirements, such as functional, UI, unit etc
   - Large and complex applications where a single framework alone cannot fulfill the requirements
   - To achieve flexibility, reusability, and maintainability in test automation


   Tools
   Selenium WebDriver (automation)
   TestNG / JUnit (Java)
   PyTest (Python)
   Cucumber / SpecFlow for BDD aspects


   Pros
   - Multiple framework improve framework strength
   - Highly flexible and adaptable


   Cons
   - Very complex to design and maintain
   - Too much time consuming to setup
   - The learning curve for the team is very steep


   Example
   Requirement: Testing login functionality with multiple users and meeting business expectations.
   Implementation:
   Data-Driven (Test multiple users), Keyword-Driven (predefined keywords like OpenBrowser, EnterUsername, EnterPassword, ClickLogin), BDD (Verifying Business Behavior)
   Execution: Running hybrid automation and validating all



5. BDD(Behavior Driven Development) Framework

   This framework focuses on collaboration among developers, testers and business stakeholders.
   In this approach, testers write test cases in a human-readable language specifically, plain English. The test cases are written based on expected behavior, utilizing a structured format known as Gherkin.

   The simple language used in the scenarios helps even non-technical team members to understand what is going on in the software project. This helps and improves communication among technical and non-technical teams, managers and stakeholders.

   The three main pieces of BDD are the
   Artifacts = Gherkin scenarios
   Domain Language = Plain English steps and Automation code(step definitions)
   Process = Test execution, reporting


   When to use
   - Requirements need to be understood by non-technical person
   - Large teams comprising multiple roles, such as developers, testers, business analysts, stakeholders etc.
   - Agile environments with continuous delivery and CI/CD


   Tools
   Cucumber (Java, Ruby, JavaScript) commonly used for Cucumber Automation Testing with Selenium Framework
   SpecFlow (.NET)
   Behave (Python)


   Pros
   - Improves collaboration between technical and non-technical team members
   - Test cases are written in plain English, making them very easy to read and understand


   Cons
   - The initial setup and learning curve are not easy
   - Team members are required to write meaningful test scenarios and test cases; otherwise, anyone might write just anything, in any manner whatsoever


   Example
   Requirement: Login functionality should display error messages when the password is incorrect
   BDD Scenario (Gherkin syntax):
   Scenario: Display error message for incorrect password
      Given the user is on the login page
      When the user enters an invalid password
      And clicks the login button
      Then the system displays an error message

   Execution: BDD tool (like Cucumber) will read the scenario, map each step to the automation code, and execute the test case.



6. Record & Playback Framework (Linear Scripting)

   This is the simplest automation framework, where the tester records actions, and the automation tool then automatically generates the script


   When to Use
   - For beginners learning automation
   - For simple and small projects require repetitive testing
   - Require quick validations for features
   - Best suited for static test data only
   - Quickly automate repetitive actions without writing code


   Tools
   Selenium IDE
   UFT (formerly QTP)
   Katalon Studio


   Pros
   - Automation scripts created very easily without any coding knowledge
   - Very fast framework
   - Very good for beginners and learner


   Cons
   - Automated scripts cannot be reused
   - Automated scripts cannot be scalable for large projects
   - It cannot handle complex logic and dynamic elements
   - Not suitable for regression testing


   Example
   Requirement: Test login functionality
   Execution:
   Open login page
   Enter username and password
   Click login
   Verify login success or failure



7. Modular Testing Framework

   In this framework, application tests are divided into independent modules, so that each module has its own separate test script.


   When to use
   - Applications that have multiple modules that are independent of each other
   - Projects requiring test scripts that are reusable reusable, scalable and maintainable


   Tools
   Selenium WebDriver
   TestNG / JUnit (Java)
   PyTest (Python)
   Cucumber / SpecFlow (if combining with BDD)


   Pros
   - Test scripts more reusable
   - Support modular design in complex applications
   - Easier maintenance of test cases


   Cons
   - Initial setup is very time consuming for different modules
   - Testers must have knowledge of coding
   - Not suitable for small projects
   - Poor planning cause module redundancy


   Example
   Requirement: Testing Login and User Profile Functionality
   Implementation
   Login Module - Open the browser, enter the credentials, click on login and verify successful login
   Profile Module - Navigate to the profile, update details, save changes and verify the updates

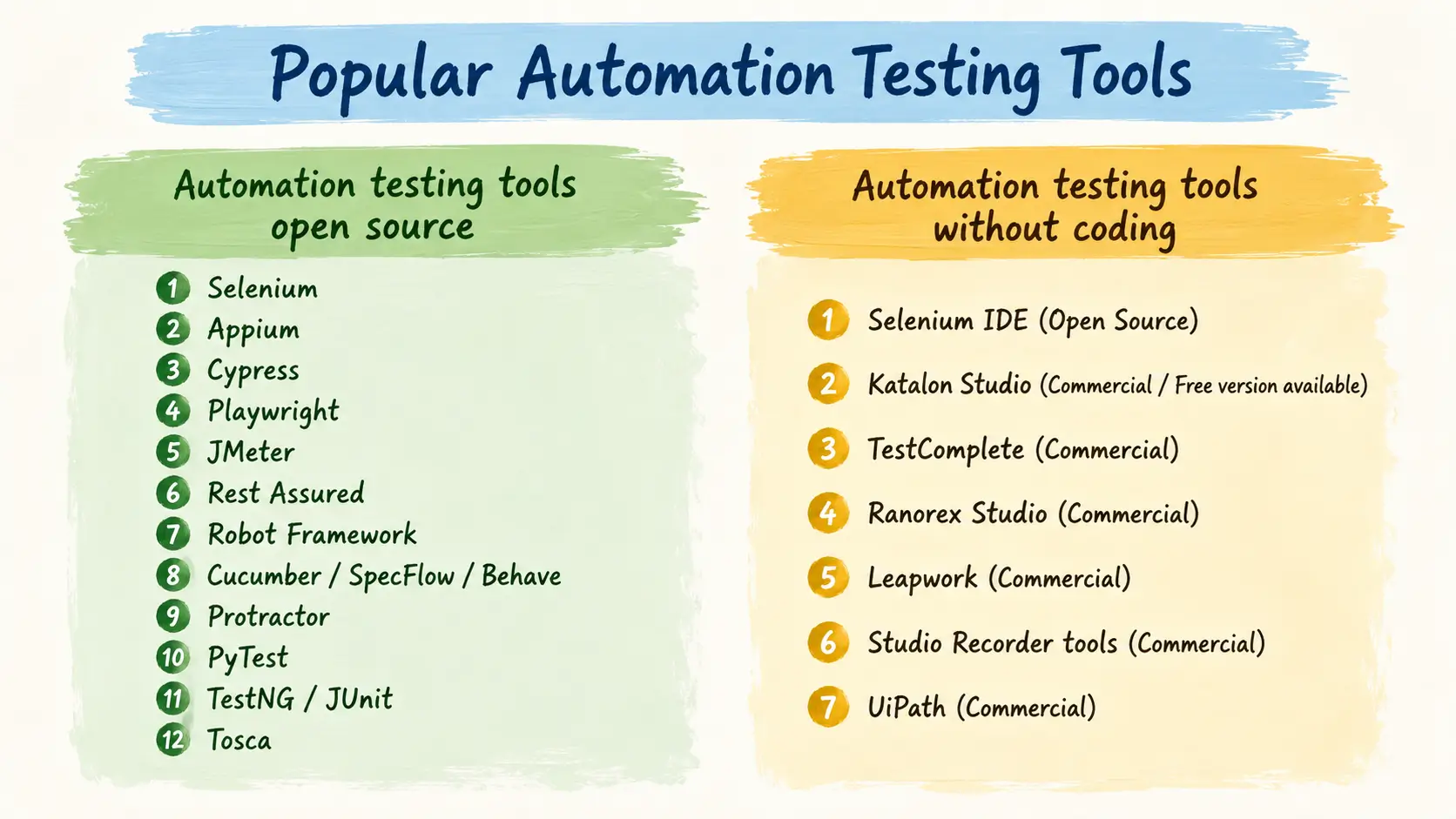

Popular Automation Testing Tools

Automation Testing Tools are utilized to automate the testing process, thereby making software testing faster, repeatable and accurate. There are various types of automation testing tools designed to address different requirements, check list below.

Automation testing tools open source

1. Selenium
2. Appium
3. Cypress
4. Playwright
5. JMeter
6. Rest Assured
7. Robot Framework
8. Cucumber
9. SpecFlow
10. Behave
11. Protractor
12. PyTest
13. TestNG
14. JUnit
15. Tosca

Automation testing tools without coding

1. Selenium IDE (Open Source)
2. Katalon Studio (Commercial / Free version available)
3. TestComplete (Commercial)
4. Ranorex Studio (Commercial)
5. Leapwork (Commercial)
6. Studio Recorder tools (Commercial)
7. UiPath (Commercial)

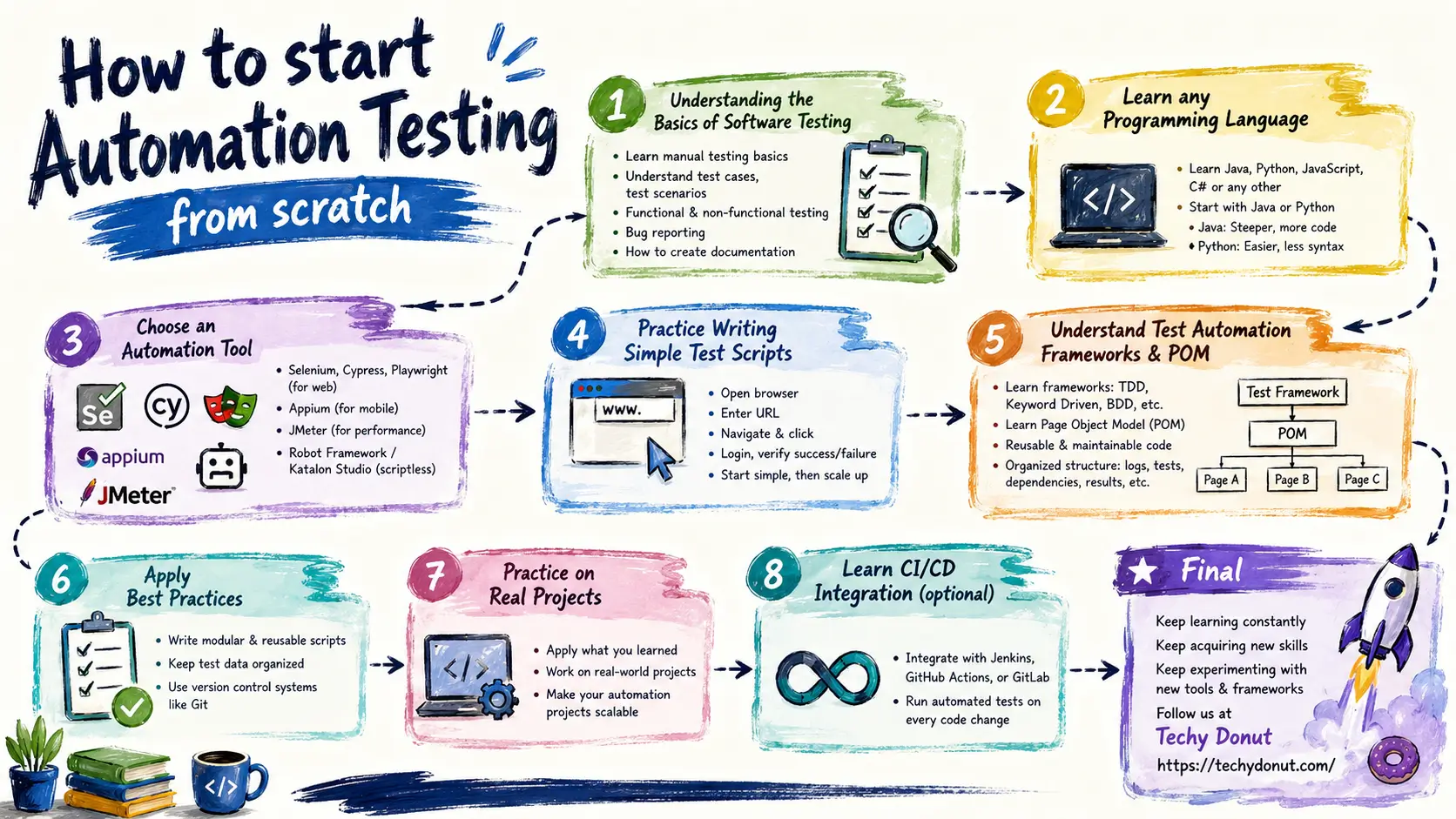

How to start Automation Testing from scratch

For new testers, starting with automation testing can seem quite overwhelming initially; however, with the right structured approach, beginners and newcomers can step-by-step learn it with ease and gain confidence. Follow the approach from underneath.


• Understanding the Basics of Software Testing
  First of all, learn fundamentals of manual testing and understand its concepts such as test cases, test scenarios, functional, non-functional testing, bug reporting, and so on.
  Try to understand how manual testing works like how to identify and report bugs, how to create documentation and so on.


• Learn any Programming Language
  Now you should learn a programming language like JavaScript, Java, Python, C# etc as automation is not possible without one. Although there are some tools that allow for automation without coding, most of them are paid and have certain limitations.
  Based on many suggestions, you should start with either Java or Python. Starting with Automation Testing in Java using scripts and frameworks helps build structured automated tests. Learning Java is little steeper and requires writing a significant amount of code, whereas learning Python is relatively easier and involves much less syntax.


• Choose an Automation Tool
  Now, choose any open-source automation tool based on requirements.
  Such as Selenium, Cypress, and Playwright for web automation testing.
  Appium for mobile application testing, including Mobile App Automation Testing with Appium and Selenium for Android and iOS applications
  JMeter for Performance Testing
  Robot Framework / Katalon Studio for scriptless or keyword-driven automation

  However, above all else, you should opt for Selenium with Java. Once you choose Selenium as your automation tool, you can set up selenium automated testing with eclipse for writing and executing scripts.
  Once you have mastered this, proceed to learn the others one by one starting with Playwright, followed by Cypress, then mobile automation, performance testing, and so on.


• Practice Writing Simple Test Scripts
  Now, use sample project and start with simple automated test scripts such as opening a browser, entering a URL, navigating and clicking and then gradually scale up to more complex tasks, such as logging in with a username and password, verifying whether the login was successful or failed, and so on.


• Understand Test Automation Frameworks & POM
  Once you have properly mastered the practice of automation, you should proceed to learn how to use and build frameworks like TDD, keyword driven, BDD etc and additionally learn the Page Object Model (POM), a design pattern inside automation framework to organize page elements and actions.
  A framework significantly simplifies your automation tasks; for instance, it allows you to reuse code in different projects without having to perform the setup process from scratch each time. It ensures adherence to a proper structure, with distinct folders allocated for various components such as logs, test files, dependencies, results, and so on.


• Apply Best Practices
  Keep your test scripts modular and reusable, keep your data organized, and use version control systems such as Git.


• Practice on Real Projects
  Now, you must apply everything you have learned so far to real-world projects and gradually make your automation projects scalable.


• Learn CI/CD Integration (optional)
  You can now also integrate CI/CD if you wish; this is highly effective in automation testing when utilizing tools such as Jenkins, GitHub Actions, or GitLab. It enables automated tests to be executed whenever changes are made to the code.


• Final
  Keep learning constantly; keep acquiring new skills, and keep experimenting with new tools and frameworks all of which you can easily do by following us at Techy Donut (https://techydonut.com/).

Benefits of Automation Testing

There are numerous benefits to automation testing, which we will discuss below these also highlight the Automation Testing advantages over Manual Testing.


• Faster Test Execution - Automated test cases run much faster than manual test cases result software releases are also fast and quick feedback.

• Repetitive Testing - In automated testing, repetitive tests can be performed any number of times and at any moment; however, in manual testing, repeating them frequently is not possible.

• Reusability of Test Scripts - Automated scripts can be reused with various data set and scenarios easily and across different projects, but a task that is extremely difficult and time-consuming in manual testing, which saves time in regression testing.

• Best for large projects - Automation testing is ideal for large-scale projects such as e-commerce applications where tasks that would be extremely time-consuming if performed manually can be efficiently resolved through automation.

• Costing & Less resource required - In automation testing, the project setup needs to be performed only once and designed to be scalable; a single automation tester can handle multiple projects, which is significantly more cost-effective compared to multiple manual testers.

• Documentation and Reporting - Automation testing tools provide detailed logs and reports that assist with auditing, defect tracking etc.


other benefits like in Smoke Testing, Continuous testing for Agile & DevOps workflows, Improved Accuracy, Consistency and Reliability, Better Test Coverage

Disadvantages of Automation Testing


• Not Suitable for Small Projects - Automation testing is not at all suitable for small projects, as the time consumption, initial setup costs and requirement for experienced resources are all significantly higher than in manual testing.

• Skilled Resources - Automation testing cannot be performed by a manual or non-technical tester - therefore it requires a skilled professional which consequently increases the project cost.

• Time Consuming Setup - Setting up automation such as creating and designing automated test scripts is a very time consuming process.

• Maintenance Overhead - Automation scripts must be updated alongside project updates, which requires ongoing effort.

• Limited Scope for Exploratory Testing - Automation testing is highly suitable for repetitive tasks however it cannot entirely replace human intuition such as that utilized in exploratory testing and in such scenarios, manual testing proves invaluable.

• Learning Curve - Learning automation testing is a steep climb, involving programming languages, automation tools, frameworks and practices.

Real Life Example of Automation Testing

By using the Selenium tool to run automated test scripts for an e-commerce site to check the important flows and functionality such as user login, product search, product selection, quantity selection, adding items to the cart and checkout.

These scripts are executed repeatedly across multiple browsers and with various data sets to detect to catch any potential breaks or failures this approach significantly saves the QA team a lot of time compared to manual testing.
